AMP U-300P | Semi-Automatic/Pneumatic Underpinner | 04-079

The listed price includes shipping

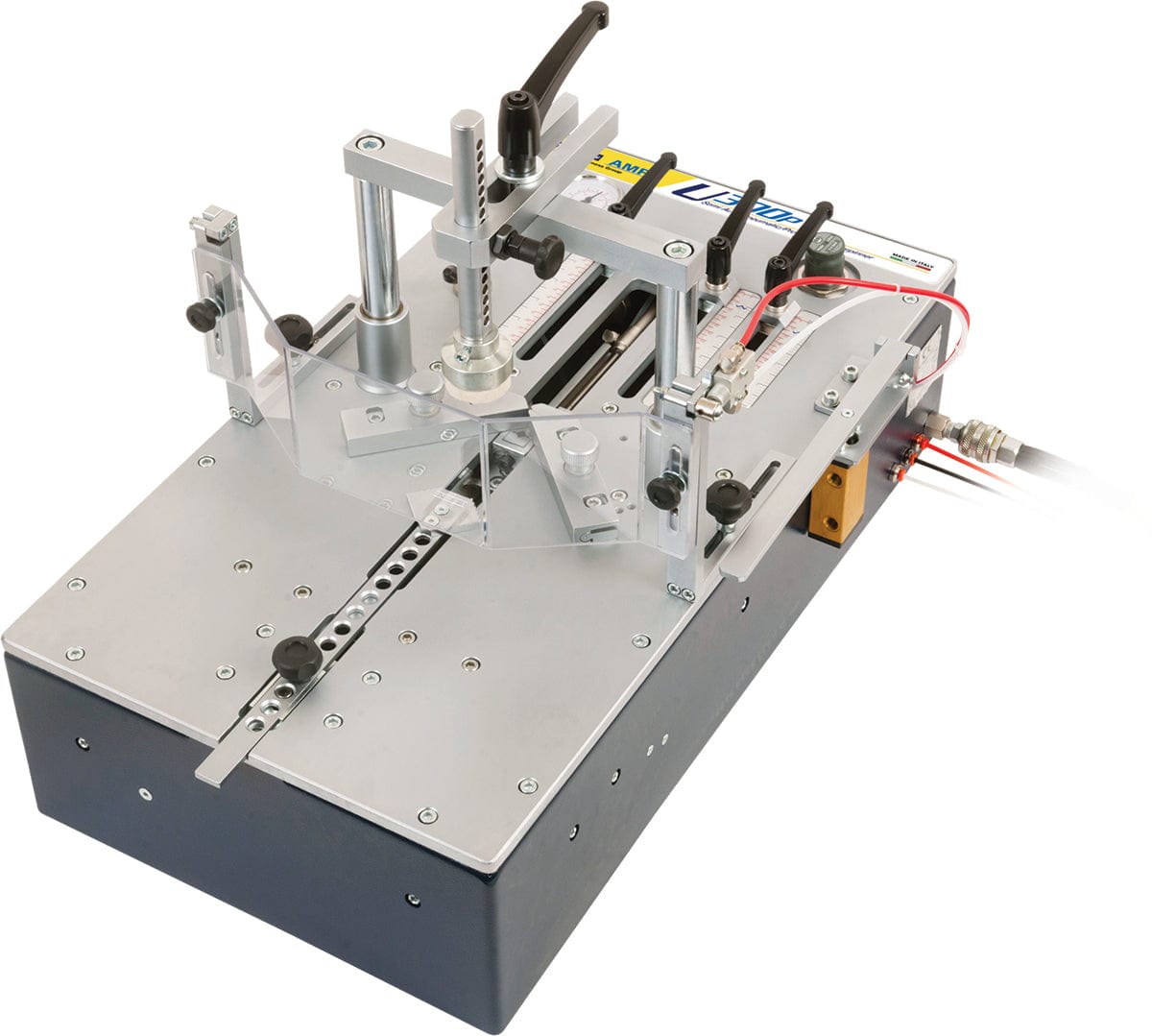

The U-300P is a bench-top, semi-automatic pneumatic frame joining machine, perfect for custom framers and sign & graphic shops. It has a compact, well constructed design will allow for many years of trouble free use.

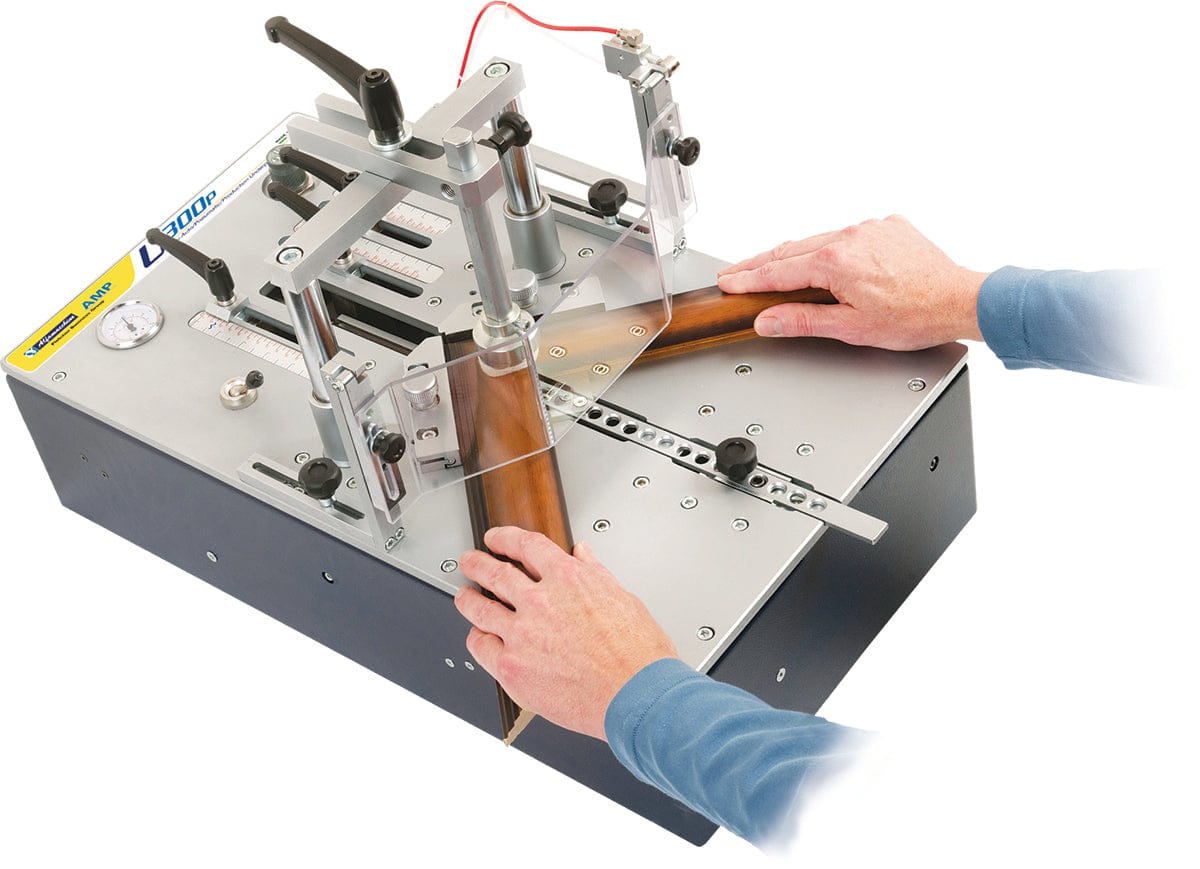

After the operator sets up to 3 position stops, press the footpad halfway to bring down the vertical and horizontal clamps to hold the frame in place. Fully pressing the footpad will insert the V-Nail. A hand lever on the side of the machine will pneumatically move the nail head to the next stop, and repeat the process till all V-Nails are inserted.  The V-Nails are inserted via footpad operated by pneumatic air, no electricity required. The table-top footprint is: 14" x 25" x 20" (350mm x 640mm x 500mm).

The U-300P can accommodate moulding as wide as 3-1/4" (80mm) and as tall as 3-1/4" (80mm). Uses V-Nail sizes 3,5,7,10,12 and 15mm for SW, HW or HDF, but additional nail heads may need to by purchased (please see purchase package below).

Formerly model VN4L.

Purchase Package:
(1) U-300P Underpinner, (1) 7mm Nail Head, (1) 10mm Nail Head, (1) 12mm Nail Head, (1) Single Vertical Positive Placement Clamp, (1) Magnetic Base for Clamp Assembly, (1) Single Metal pressure plate, (1) Blue Rubber Pad (SW), (1) Yellow Rubber Pad (MW), (1) Black Rubber Pad (HW), (1) Round Pressure pad - felt, (1) Front Horizontal Clamp, (1) 4mm Allen Wrench, (1) 5mm Allen Wrench, (1) Adjustable Fence (3 knobs), (1) Machine Manual w/ warranty card.

 Use only Genuine Power Twist® V-Nails by AMP.
