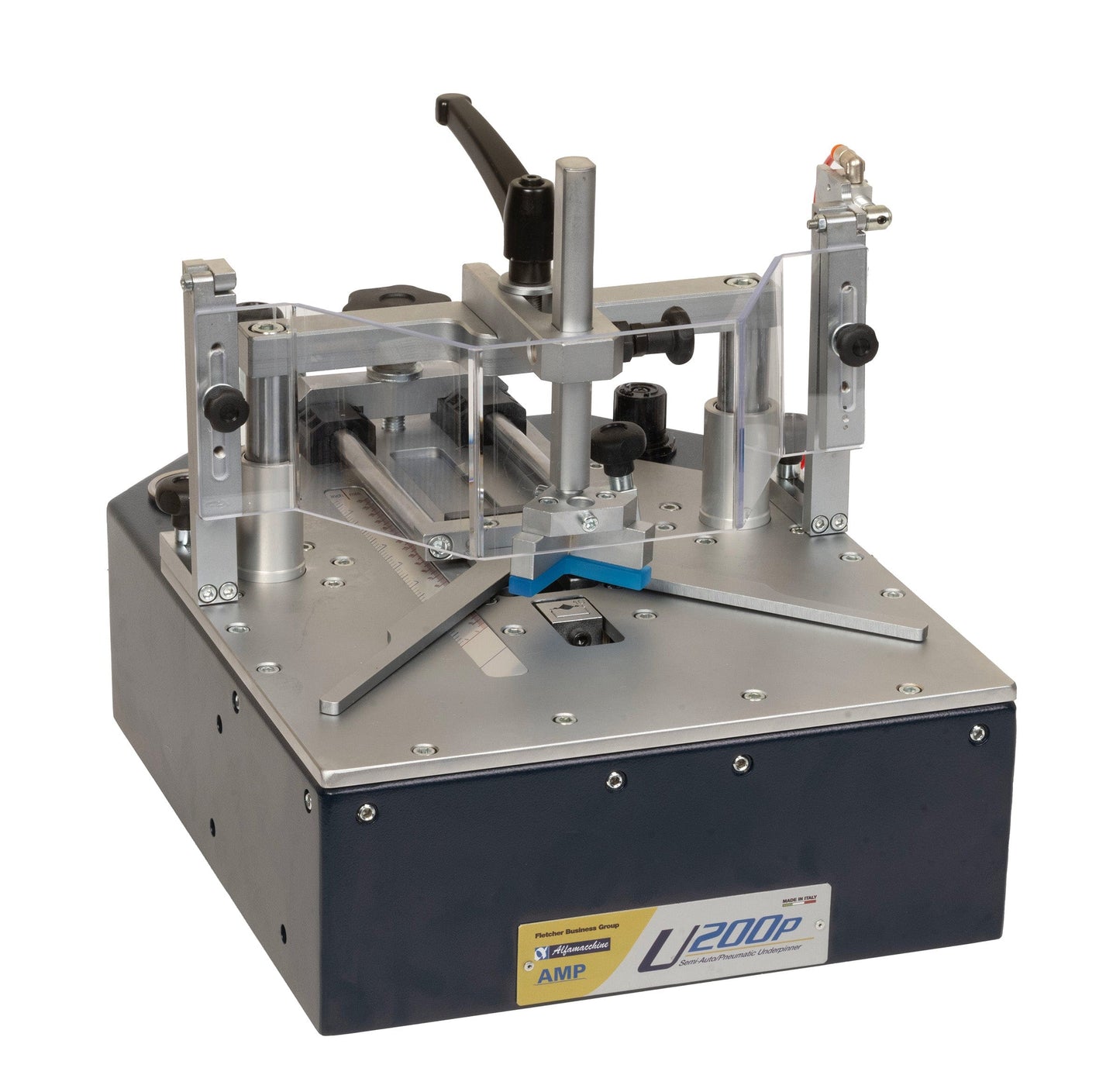

Fletcher U-200P Semi-Auto/Pneumatic Underpinner

Fletcher U-200P Semi-Auto/Pneumatic Underpinner

Regular price $2,805.86 USD
Regular price $2,672.25 USD Sale price $2,805.86 USD
Sale Sold out
Shipping calculated at checkout.


The listed priced includes shipping.

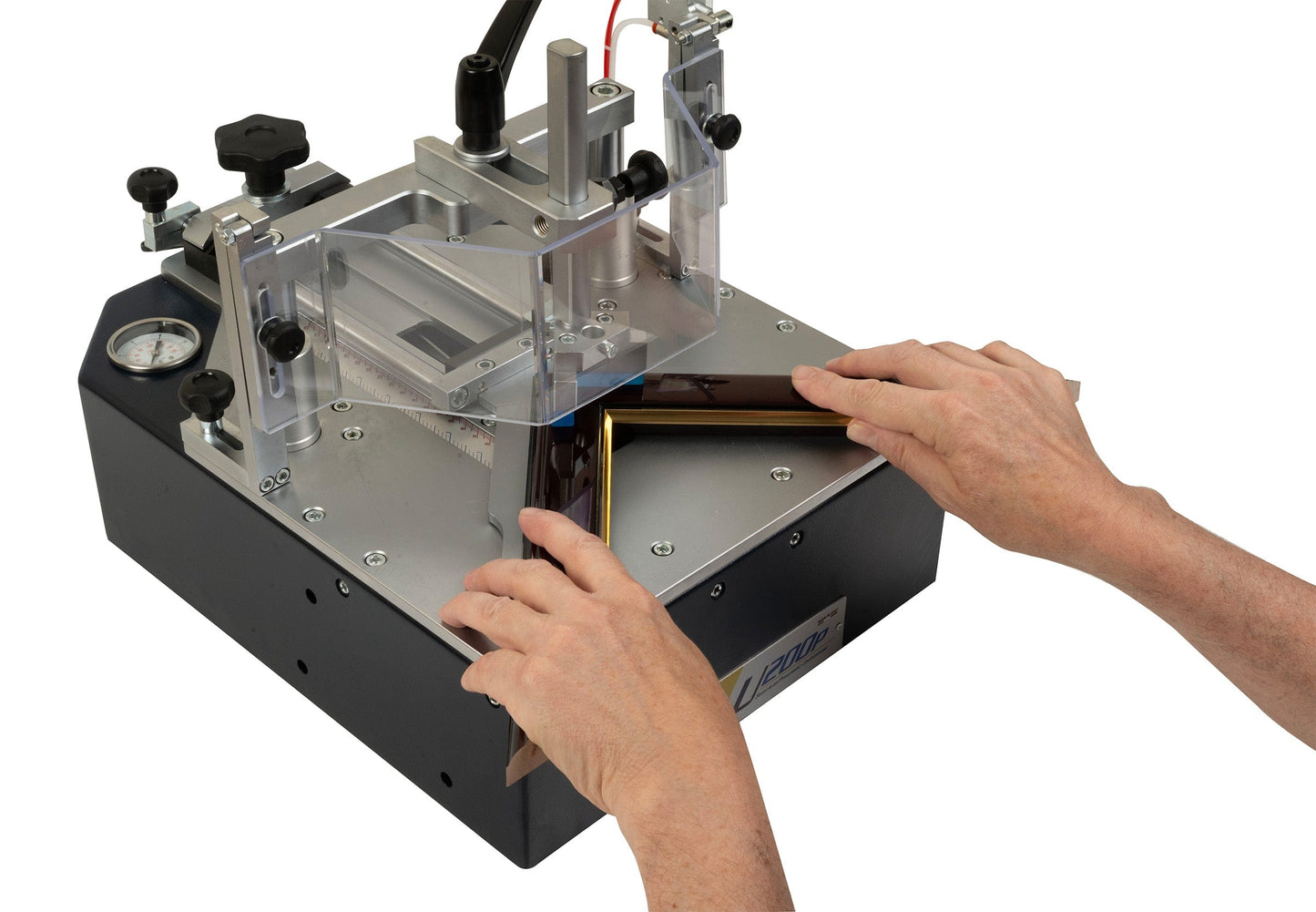

Our U-200P is a bench top frame joining machine and the most popular model with the custom and home business frame shops. It is compact, well-constructed, and built for many years of trouble free operation. The design of the U-200P allows the operator to set the front and back stops for V-Nail insertion based on the width of the moulding. The frame is then moved across the nail head and V-Nails are driven or stacked anywhere along the frame joint area.

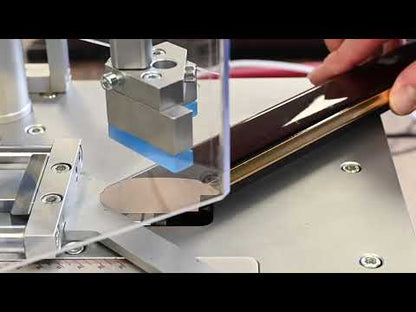

The V-Nail insertion is actuated through the use of a two position pneumatic pedal. Press halfway down to automatically activate the vertical clamping holding moulding in place, then by pushing the pedal all the way down inserts the V-Nail fastener. This process is repeated for each V-Nail insertion location.

Moulding Width: 0.25" to 5"
Moulding Height: 0.25" to 3.14"
Max Distance Between V-Nails: 7"

Features:

  • “Soft Clamping” pneumatic feature for damage free joints – Three different clamping pads are included, Soft, Medium and Hard depending on the moulding
  • Quick-change magnetic base hold down feature fitting most moulding profiles
  • Small table-top foot print needed – 13 ¼” wide x 17 ¾” length x 17 ¾” high – clamping mechanism height
  • Operates only with pneumatic air, no electrical hook-up needed
  • Dual function foot pedal for separate control of material clamping and V-Nail insertion
  • Designed with a unique trouble free piston V-Nail driver block-blade system for years of dependable single and multi-stacking operations

Machine Dimensions & Weight:
Width: 13.25"
Length: 17.75"
Height: 17.75" - Clamping Height
Weight: 78lbs.

U-200P Purchase Package:

  • (1) 7mm Nail Head
  • (1) 10mm Nail Head
  • (1) 12mm Nail Head
  • (1) Single Vertical Positive Placement Clamp
  • (1) Fixed Fence 90°
  • (1) Single Metal Pressure Plarte designed for Changeable Clamping Pads
  • (1) Magnetic Support for Vertical Placement Clamp
  • (1) Blue Rubber Pad (SW)
  • (1) Yellow Rubber Pad (MW)
  • (1) Black Rubber Pad (HW)
  • (1) Round Pressure Pad - Felt
  • (1) 4mm Allen Wrench
  • (1) 5mm Allen Wrench
  • (1) 6mm Allen Wrench

A machine stand is available for separate purchase.
